Bottom Line Up Front: The Lab599 TX-500 series represents a paradigm shift in portable QRP transceivers, prioritizing extreme durability and ultra-low power consumption over feature count. While it lacks some conveniences found in other radios, its military-grade construction, 100mA receive current, and unique form factor create a compelling option for serious field operators who need reliability above all else.
Affiliate Disclosure:
“Just so you know, some of the links on this page are affiliate links. This means if you decide to make a purchase through one of those links, I might earn a small commission at no extra cost to you. Your support helps keep this content going—thank you!”
What Makes Lab599 Different?
When most manufacturers chase feature lists and touchscreen interfaces, Lab599 took a completely different approach with their TX-500 series. Born from the mind of designers who understand that field radio operations often mean harsh conditions, equipment failures can be life-threatening, and every milliamp of current consumption matters when you’re running on batteries for days.

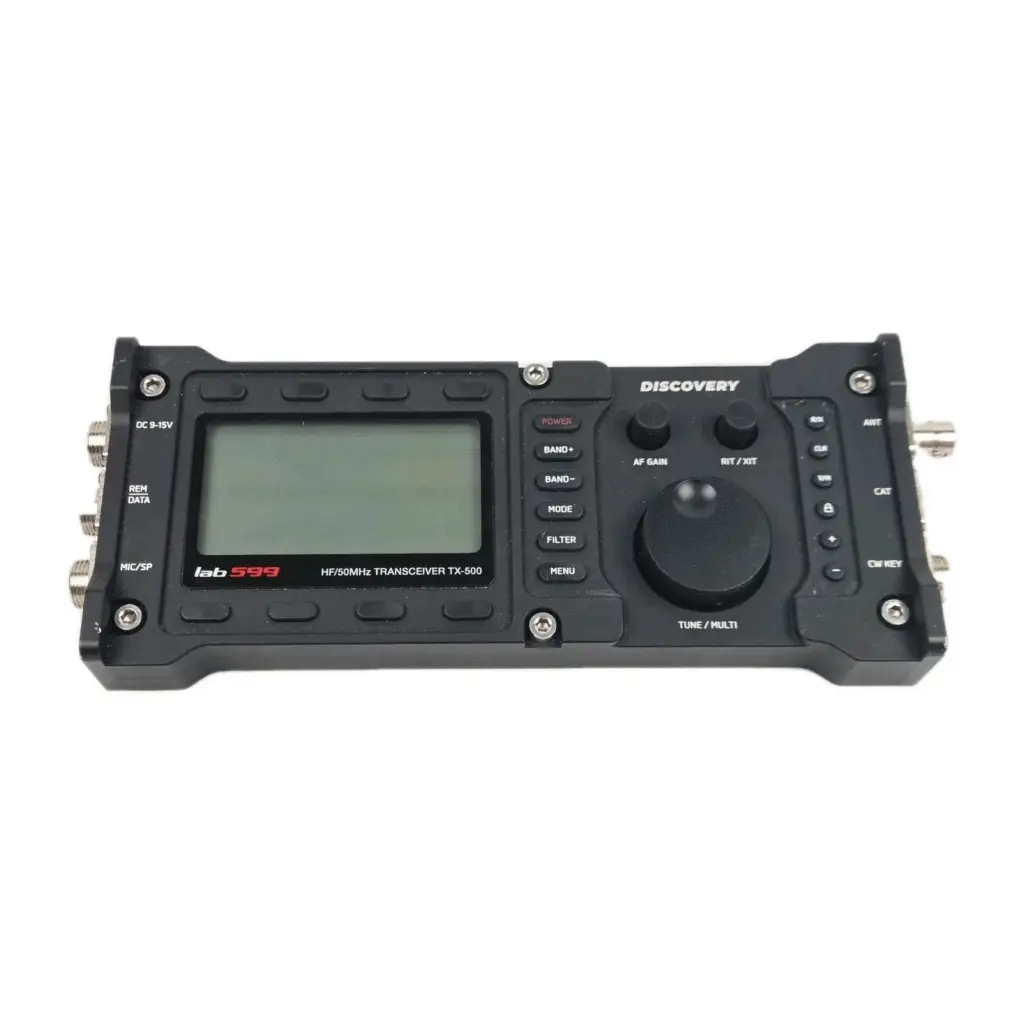

The Lab599 Discovery TX-500 covers 160−6 meters amateur radio bands, all modes, with a maximum power output of 10 W, but that simple specification doesn’t capture what makes this radio special. It’s not trying to be everything to everyone—instead, it’s laser-focused on being the most reliable, efficient, and durable portable HF transceiver you can buy.
The company offers two variants that share the same core platform but serve different missions:
TX-500 DISCOVERY: The original model that established Lab599’s reputation for ultra-portable, efficient HF operation.
TX-500MP: The newer “manpack” variant designed specifically for tactical/emergency applications with integrated antenna tuner and enhanced ruggedness.
Design Philosophy: Built for the Unthinkable
Military-Grade Construction That Actually Means Something
The transceiver’s body is made of durable aluminum by the method of precision milling, to ensure a unique shock protection and provide good heat removal from the output part of the transmitter. But Lab599 didn’t stop with just using aluminum—they engineered a housing that’s genuinely weather-resistant.
Due to the liquid-protected housing and the absence of through-holes, spatter resistant plugs, encoders with sealing rings, the transceiver will work reliably in extreme conditions. This isn’t marketing speak—it’s a radio designed for operators who might find themselves operating in rain, snow, dust, or worse.
The 30mm Miracle: Form Factor Revolution
At only 30 mm thick, including knobs, weighing only 0.55 kg, the TX-500 achieves something remarkable: it’s genuinely pocketable for an HF transceiver. This isn’t just about saving weight—the slim profile means it fits in places other radios simply can’t, from motorcycle saddlebags to tactical packs.
The slim form factor of the radio is perfect for backpacks. It fits perfect in a medium Magpul Daka pouch, according to one experienced QRP operator who owns multiple portable rigs.
Power Consumption: The Game Changer
100mA Receive: Industry-Leading Efficiency
The TX-500’s most significant technical achievement might be its power consumption. TX-500 transceiver uses unique circuit solutions to reduce the current consumption from a 13.8 V source to 100 mA, which is a unique offer on the market.
To put this in perspective, most portable HF transceivers draw 250-400mA in receive mode. The TX-500’s 100mA consumption means you can operate 2-4 times longer on the same battery capacity—a critical advantage for extended field operations.
A single 5ah battery for a weekend with power to spare, reports one field operator who used the radio for an entire weekend camping trip. This efficiency opens up possibilities that simply aren’t practical with higher-consumption radios.
Technical Specifications Deep Dive
Frequency Coverage and Performance
The TX-500 operates across 160-6 meters amateur radio bands, all modes, with a maximum power output of 10 W. While 10 watts puts it firmly in the QRP category, the efficient transmitter design and clean signal output maximize the effectiveness of that power.
RF Design Excellence
Discovery TX-500 has 11 discrete RF bandpass filters. The RF signal is only passed through one of the band-pass filters — any out-of-range signals are rejected. This approach to front-end design provides excellent selectivity and helps protect the receiver from strong out-of-band signals—a common problem in portable operations near commercial transmitters.
Built-in Panadapter
The transceiver features a built-in high-performance panadapter, for better search for new contacts and evaluation of band conditions. Having real-time spectrum display in a portable radio this compact was remarkable when the TX-500 was introduced and remains impressive today.
TX-500MP: The Tactical Evolution
What’s Different in the MP Version
The TX-500MP transceiver is a compact, portable HF radio in a manpack form factor, designed for professionals and enthusiasts who prioritize mobility, operational efficiency, and extended autonomy.
The key enhancement is the built-in automatic antenna tuner ensures compatibility with various antennas, including portable ones, enabling quick readiness for transmission. This addresses one of the most significant limitations of the original TX-500.
